De Machine van het de Matrijzenafgietsel van de magnesiumlegering

Magnesium Alloy Metal Casting Machine T-Groove Way 110Mpa Injection Molding Equipment

Merknaam:	EMT
MOQ:	Overeen te komen
Prijs:	negotiable
Betalingsvoorwaarden:	T/T, Western Union
Toeleveringsvermogen:	50000PCS /Month

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

TS16949、IOS9001

Operationeel:

Veiligheid

Materiaal:

Magnesiumlegering

Productiecapaciteit:

hoog

Afmetingen:

Vereiste klant

OEM:

werk:

eenvoudig

Verpakking Details:

Volgens klantenbehoeften

Levering vermogen:

50000PCS /Month

Markeren:

Magnesium Alloy metal casting machine

T-groove way metal casting machine

110Mpa injection molding equipment

Productbeschrijving

Mg-300 magnesium alloy semi-solid injection molding machine

Technical parameters

No.	Description	Unit	MG-300
I. Mold locking
1	Mold locking force	kN	3000
2	Mold lock stroke	mm	550
3	Mold thickness (minimum to maximum)	mm	250-650
4	Clamping plate dimension (horizontal × vertical)	mm	970x960
5	Column spacing (horizontal × vertical)	mm	630×630
6	Way of mold installation		T-groove way
II. Injection
1	Screw diameter	mm	51
2	Injection pressure	MPa	110
3	Theoretical injection volume	cm³	294
4	Theoretical injection mass	g	424
5	Theoretical injection rate	cm³∕s	9031
6	Screw’s maximum injection speed	m∕s	5
7	Screw’s rotation speed	r∕min	10-300
8	Injection stroke	mm	150
9	Injection nozzle dimension	mm	φ13×R25
10	Injection nozzle inlet	mm	50
11	Injection nozzle contact force	kN	300
12	Injection device position	mm	0,-100
I. Others
1	Systematic operating pressure	MPa	16
2	Ejection force	kN	180
3	Ejection stroke	mm	125
4	Electric motor power	kW	37
5	Heater’s output power	kW	17
6	Melting servo motor power	kW	16
7	Total electric capacity	kW	70
8	Oil tank capacity	L	600
9	Machine weight	kg	16000
10	Machine’s overall dimension (L×W×H)	m	6.8×1.8×2.6

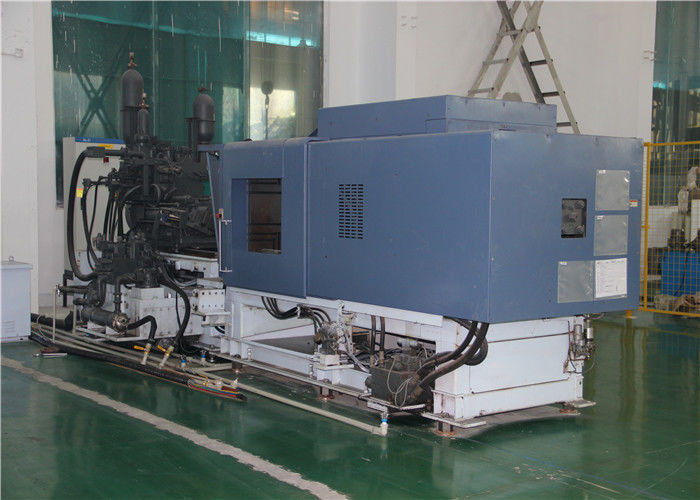

Magnesium Alloy Metal Casting Machine T-Groove Way 110Mpa Injection Molding Equipment 0

Magnesium Alloy Metal Casting Machine T-Groove Way 110Mpa Injection Molding Equipment 1

Magnesium Alloy Metal Casting Machine T-Groove Way 110Mpa Injection Molding Equipment 2

Advantage:

FAQ:

1. Q:Are you a factory or a trading company?

A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.

2. Q: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality control.

3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?

A: Yes, with written standard procedures.

4. Q: Is there a procedure to conduct random product inspections after final packaging?

A: Yes, with clear standard and written inspection records.

5. Q: How can I get a quotation?

A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)

6. Q: What is your payment terms?

A: T/T, Western Union, etc.
